Introducing the New Standard for DLC (Diamond-Like Carbon) Coatings: CertessTM Carbon

What is a Diamond-Like Carbon (DLC) Coating?

In recent years, a new generation of PVD + PACVD (plasma-assisted CVD) carbon has gained widespread commercial success. Carbon can exist in three allotropic forms:

  1. In a diamond crystal structure, it is one of the hardest known materials.
  2. In a graphite crystal structure, is very soft and lubricous.
  3. Diamond-like carbon (DLC) coatings combine the properties of diamond and graphite: high hardness levels, in the range of conventional tribological PVD coatings (1500 - 3200 HV), coupled with a coefficient of friction which is 200-500% lower than that of conventional PVD coatings. (See illustration below.)



What is DLC



Besides this unique combination of properties, this new generation of coatings has high load-bearing capabilities, making them an ideal choice for improving the performance of engineered components. Moreover, these coatings are usually bio-compatible, so are suitable for food-contact and medical applications. The lubricious surface also has good release properties, making these coatings a good choice for plastic processing applications.

As part of the HEF Group, TS NCT offers a wide variety of DLC coatings for our customers to choose from, with properties and underlayers that can be adjusted to provide the optimum performance for your application.

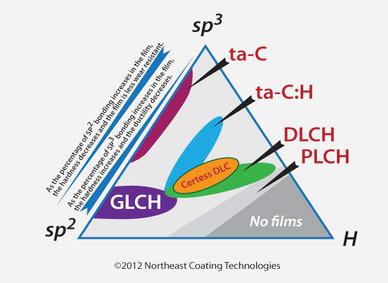

Coating hardness can vary depending on the structure of the coating. The ratio of SP2 to SP3 bonding and hydrogen content can vary in the film depending on the process used to deposit the DLC coating and the process parameters. The phase diagram to the right shows the various groups or regions for DLC coatings that are available:

  • Films with higher SPbonding, or graphitic content, will exhibit lower film hardness and tend to provide lower abrasion-resistance.
  • Films with a very high SP3 bonding content will tend to be very hard with a high level of abrasion-resistance, but will be brittle and less ductile.
  • Films with very high SP3 content and no hydrogen are tetrahedral DLC (ta-C) coatings, exhibiting a very high surface hardness of 3000 - 7000 Hv, but offer low ductility.

All DLC coatings will have multiple bonds and varying hydrogen content within the coating. Depositing a film that combines the proper amount of hydrogen, the proper ratio of SP2 to SP3 bonding, and the best underlayer for the application is key to achieving low friction, a high level of wear-resistance, ductility, and proper adhesion and load-carrying capability.

We work with customers to understand the wear modes and operating conditions of your component to select the best DLC coating for your application.

DLC Structure Chart

DLC Phases—Diamond

DLC Phases—Graphite


The properties of DLC coatings (hardness, coefficient of friction, roughness, adhesion level, load-carrying capacity, resistance to humidity-influenced degradation, fatigue tolerance, etc.) can be tailored over a wide range depending upon deposition parameters, deposition technology, and the combination of materials constituting the coating. While the layers can be varied to meet the application requirements, the image below shows a normal transition and layering from the substrate to the DLC layer.

DLC Layering


In order to meet the diverse operating conditions encountered by engineered components used for automotive and other industrial applications, HEF has developed a family of DLC coatings. These coatings usually include several layers of different materials, such as Cr, CrN, W, WC-C, and Si, with a top layer of amorphous carbon and hydrogen. The selection of the under layer is based upon several factors such as: adhesion requirements, wear mode and contact mode, friction regimes encountered during operation, load-carrying capacity, and other metallurgical considerations. These coatings have a unique combination of high hardness and low friction coefficient compared to conventional PVD coating (TiN, CrN, ALTiN, etc.) and soft coatings (including solid lubricants like Molybdenum di-sulfide).


DLC Family:

  • Unique combination of high hardness and low friction coefficient produces the hardness of diamond and the lubricity of graphite



DLC Family Chart

DLC Topography Layers

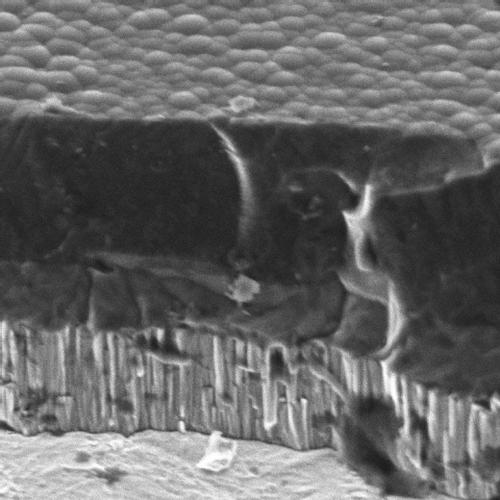

Topography of the top carbon layer depends on the morphology and structure of the underlayer.
